Replacement filter elements to the manufacturer’s part number, as well as knitted wire mesh sleeves and mesh tapes in stainless steel for building particulate filters.
Drag to rotate. Zoom with two fingers or Ctrl + mouse wheel. Example design. We supply to your drawing or specification.
| Filter elements | Equivalent replacement to the manufacturer’s part number or dimensions |
| Use | Hydraulic oil and lubricating oil, other media on request |
| Filter material and fineness | Same as the original element |
| Knitted mesh sleeves | With or without glass fibre insert, to drawing or sample |
| Mesh tapes | Stainless steel 1.4301 or 1.4401, width 15 to 20 mm, thickness 3 to 4 mm, on rolls |
| Quantities | Single requirements and recurring series |
| Delivery time | On request, stated in our quotation |
| Other designs | On request: other sizes, materials and makes, special designs to drawing |
Many plants run on filter elements from a particular manufacturer. We source equivalent elements to the original part number, with the same dimensions, the same fineness and the same connection. If you change filters regularly, this lowers costs. Nothing changes on the filter housing.

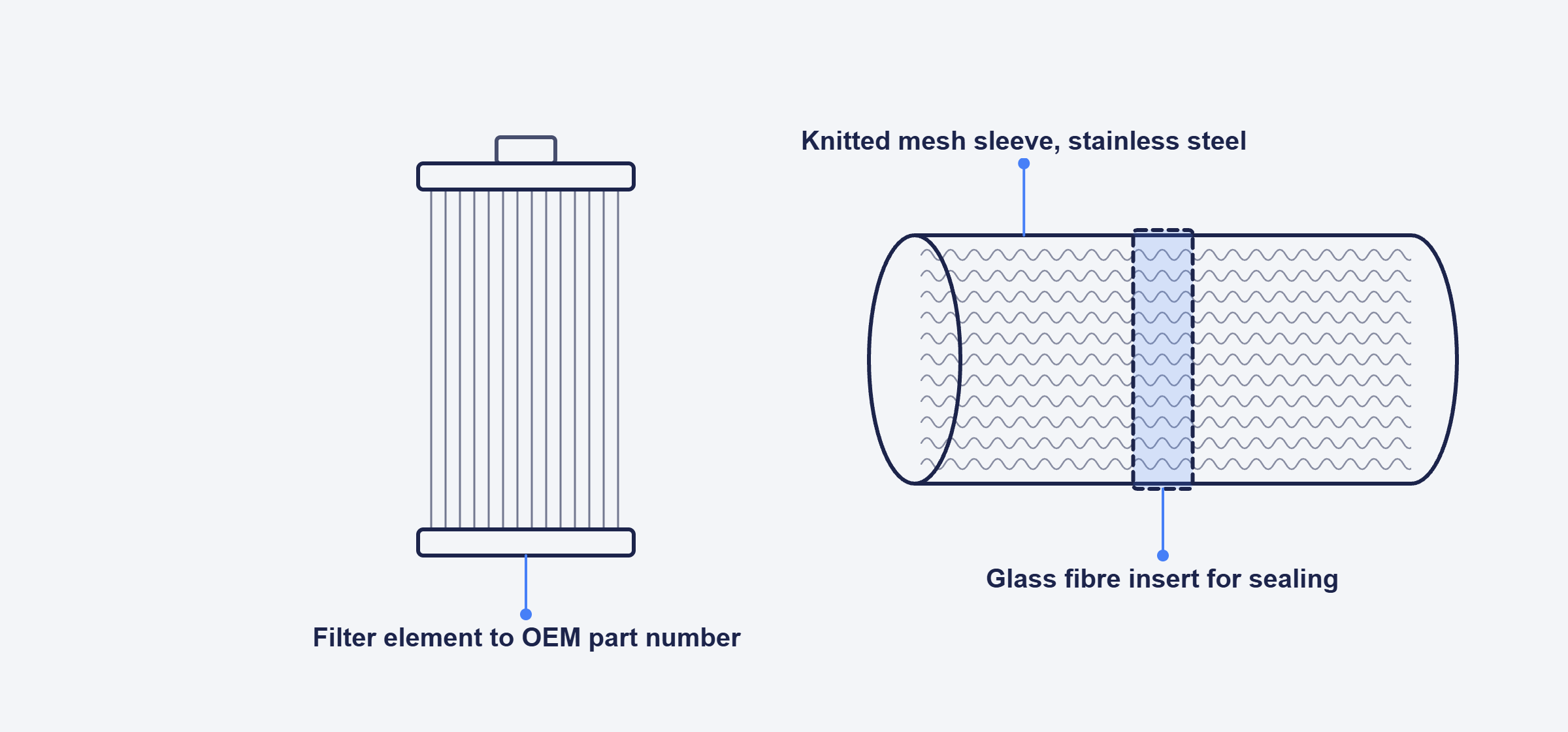

For manufacturers of particulate filters we supply knitted wire mesh sleeves and mesh tapes in stainless steel. The sleeves hold the filter insert in the housing and absorb thermal expansion. A glass fibre insert improves the seal. Production is to drawing or sample, from single units to series.
The same knitted wire mesh is used in our demisters for droplet separation.
Yes. We source filter elements with the same dimensions, the same fineness and the same connection as the original. Nothing changes on the filter housing.
For hydraulic oil and lubricating oil. Other media on request.
They hold the filter insert in the housing and absorb thermal expansion. A glass fibre insert improves the seal.
The manufacturer’s part number or a photo of the old element, the medium, the quantity and the annual requirement.
Yes. Eurolog delivers filter elements to the installation site throughout Switzerland and abroad, for example to Germany, Italy or France. We arrange transport, customs clearance on import into Switzerland and export documents.
Yes. The details on this page are examples. We also source other sizes, materials and makes, replacements for older plants and special designs to drawing. For a first enquiry a photo, the nameplate or a sketch is enough.
What we need for a quotation
For filter elements: manufacturer’s part number or a photo of the old element, medium, quantity and annual requirement. For sleeves and tapes: drawing or dimensions, material and quantity. If your part is not on this page, ask us anyway.
